Extrusion vs. Injection Molding: What Is the Difference?

In the plastics industry, two manufacturing heavyweights dominate production: extrusion moulding vs injection moulding. While both involve melting plastic to create usable shapes, they serve fundamentally different purposes.

Simply put, injection molding is the go-to method for creating three-dimensional, discrete parts like phone cases or bottle caps. In contrast, extrusion molding is designed for manufacturing continuous, two-dimensional profiles such as pipes, tubing, or window frames. Understanding the nuances of extrusion vs injection moulding is critical for selecting the right manufacturing path for your product.

Extrusion vs. Injection Molding Principle

What is Injection Molding?

Injection molding relies on a cyclical "stop-and-go" process. The machine melts plastic pellets into a viscous liquid and injects this material under high pressure into a closed metal cavity (the mold). Once the plastic cools and solidifies, the mold opens, and the finished 3D part is ejected.

What is Extrusion Molding?

Extrusion molding plastic is a continuous process. Instead of filling a cavity, an extruder screw pushes molten plastic through a heated barrel and forces it out through a shaped die—known as the extrusion mold. This creates a continuous profile with a constant cross-section, which is then cooled and cut to length.

Extrusion vs. Injection Molding Process

Injection Molding Process:

1. Plasticization: Granules are melted in the barrel.

2. Injection: The screw forces the melt into the closed mold.

3. Cooling: The part solidifies inside the mold.

4. Ejection: The mold opens, and the part is removed.

5.


Extrusion Molding Process:

The process involves two main stages:

1. Plasticization & Extrusion: The solid plastic is melted and pushed under pressure through a specially shaped die.

2. Sizing & Cooling: As the profile exits the die, it passes through cooling tanks or vacuum sizers to freeze its shape into a solid product.

3.


Extrusion vs. Injection Molding Time

Injection molding operates in distinct cycles. A single cycle—from injection to ejection—can take anywhere from a few seconds to several minutes depending on the part's size and thickness.

Extrusion molding is continuous. Once the machine is running, it produces product non-stop. The efficiency depends on the line speed and cooling capacity rather than a cycle time.

Extrusion vs. Injection Molding Methods

Injection Molding Methods

This method typically uses an injection molding machine (often called a press) and a complex mold. It is predominantly used for thermoplastics but can also handle thermosetting plastics. The key characteristic is that the product takes the exact shape of the closed mold cavity.

Extrusion Molding Methods

In extrusion vs injection molding, extrusion is about pushing material through a shape rather than into one. Common applications include manufacturing PVC pipes or specialized profiles. For example, producing complex housing components might require knowing about plastics extrusion lines to understand how different machinery affects output quality.

Extrusion vs. Injection Molding Materials

While both processes utilize polymers like PVC, PE, PP, and ABS, the material grades are distinct.

Difference in Liquidity (Flow Rate)

Injection molding requires materials with high fluidity (low viscosity) to flow quickly into intricate mold cavities. Extrusion materials are generally more viscous to maintain stability as they exit the die.

Melt Strength

This is a crucial difference. In extrusion, the plastic leaves the die in a soft, semi-molten state. It requires high "melt strength" to hold its shape before it fully cools. If the melt strength is too low, the profile will collapse. Injection molding does not require this property since the part cools inside a rigid mold.

Outlet Expansion

Extrusion materials must be formulated to manage "die swell" (expansion upon exiting the die). Injection molding generally does not have to account for this phenomenon to the same degree.

Extrusion vs. Injection Molding Advantages and Disadvantages

Injection Molding

• Pros: Capable of extremely complex 3D shapes; high precision; fully automated; ideal for mass production of discrete parts.

• Cons: High initial tooling costs; expensive machinery; strict process control required.

•


Extrusion Molding

• Pros: High efficiency for continuous products; lower tooling costs compared to injection molds; excellent for pipes, sheets, and films.

• Cons: Limited to 2D cross-sections; requires downstream equipment for cutting and winding; cannot produce complex 3D geometries.

•


Extrusion vs. Injection Molding Product Applications

Injection Molding Applications:

This process creates items with precise dimensions, from tiny gears to large automotive panels. Common products include packaging, toys, medical devices, and electronic housings.

Extrusion Molding Applications:

Extrusion molding vs injection molding really comes down to the final shape. Extrusion is used for:

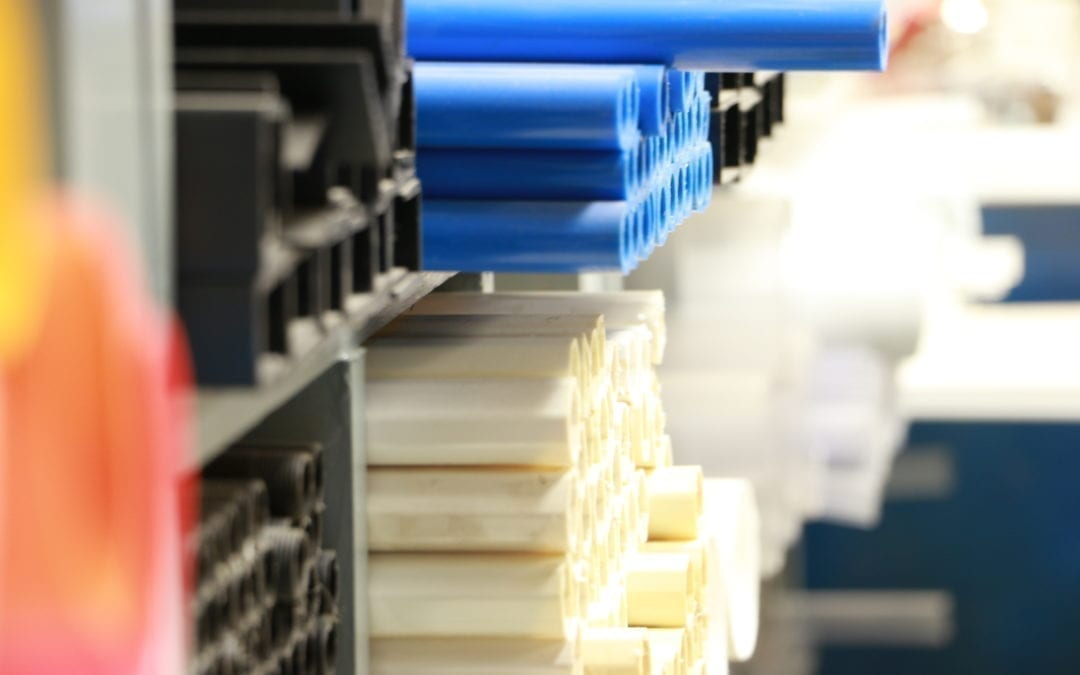

• Pipes and Tubing: PVC water pipes, medical hoses.

• Profiles: Window frames, door seals, and complex WPC structures like those found in grille housing plastic mold wholesale manufacturing.

• Sheets and Films: Plastic wrap, thermoforming sheets.

•


Extrusion vs. Injection Molding Machine

Different Working Principles

Injection Molding Machine: Operates cyclically: Dosing -> Plasticization -> Injection -> Cooling -> Ejection.

Extruder: Operates continuously. The screw acts as a pump, conveying solid pellets into a melt zone and pushing them through the die head.

Different Features

Injection machines are vertical or horizontal presses that require significant clamping force to keep the mold closed. Extruders are typically long, horizontal barrels focused on consistent pressure and mixing.

Classifications

• Injection Machines: Classified by clamping tonnage and injection volume. Variations include plunger-type (older technology) and reciprocating screw-type (industry standard).

• Extruders: Primarily classified into Single Screw (standard transport) and Twin Screw (mixing and compounding) models.
